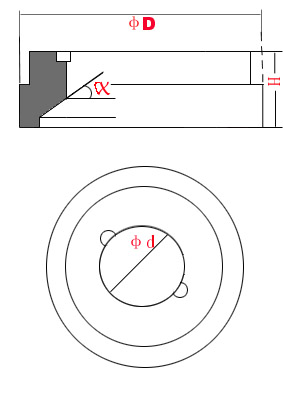

Name Seriesand Model No. Sealed Washer STH-P1 Materials Applications B4C ,SiC ,Tungsten Carbide Sealing Size Range Ø D Ø d H a 20-100 10-60 10-30 60

Name Seriesand Model No. Sealed Washer STH-P2 Materials Applications B4C ,SiC ,Tungsten Carbide Many mechanical sealing Size Range Ø D Ø d H 30-100 10-160 10-50

Name Seriesand Model No. Sealed Washer STH-P3 Materials Applications B4C ,SiC ,Tungsten Carbide Many shaft sealing Size Range Ø D Ø d H 30-160 10-100 10-30

Name Seriesand Model No. Sealed Washer STH-P4 Materials Applications B4C ,SiC ,Tungsten Carbide Many sealing Size Range Ø D Ø d H 50-120 20-80 10-30

Name Seriesand Model No. Sealed Washer STH-Y1 Materials Applications B4C ,SiC ,Tungsten Carbide Many mechanical sealing Size Range Ø D Ø d H 50-100 30-60 10-30

Name Seriesand Model No. Sealed Washer STH-Y2 Materials Applications SiC Tungsten Carbide Many sealing Size Range Ø D Ø d H 30-200 10-160 10-30

Name Seriesand Model No. Sealed Washer STH-Y3 Materials Applications SiC, Tungsten Carbide Many shaft sealing Size Range Ø D Ø d H 30-160 10-100 10-30

Name Seriesand Model No. Sealed Washer STH-Y4 Materials Applications SiC, Tungsten Carbide Many mechanical sealing Size Range Ø D Ø d H 20-60 4-44 5-10

Name Seriesand Model No. Sealed Washer STH-Y5 Materials Applications SiC ,Tungsten Carbide Many  sealing Size Range Ø D Ø d H 30-200 10-160 10-30

Name Seriesand Model No. Sealed Washer STH-Y6 Materials Applications SiC ,Tungsten Carbide Many mechanical sealing Size Range Ø D Ø d H 30-200 15-160 10-30

This type  is our standard products, if you are interested in it or you have any question, please let us know the details of your requirements and this type number. Or please fill in the form given in our Terms & Conditions.
