????????????????????? Shank ?????????? <

????????????????????????? ?????? Shank

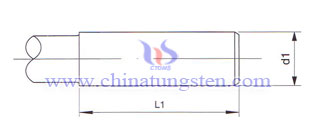

????????????????????????? DIN6535-HA


dh6	2	3	4	5	6	8	10	12	14	16	18	20	25	32
L1₀⁺²	28				36		40	45		48		50	56	60

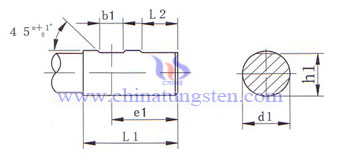

????????????????????????? DIN6535-Hb

d1 H6	b1 +0.05 0	e1 0 -1	h1 H11	L1 +2 0	L2 +1 0
6	4.2	18.0	5.1	36.0
8	5.5	18.0	6.9	36.0
10	7.0	20.0	8.5	40.0
12	8.0	22.5	10.4	45.0
14	8.0	22.5	12.7	45.0
16	10.0	24.0	14.2	48.0
18	10.0	24.0	16.2	48.0
20	11.0	25.0	18.2	50.0
25	12.0	32.0	23.0	56.0	17.0
32	14.0	36.0	30.0	60.0	19.0

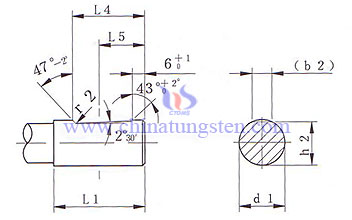

????????????????????????? DIN6535-HE


d1=6~20mm	d1=25~32mm

d1	(b2)	(b3)	(h2)	(h3)	L1	L4	L5	r2
6.0	4.3		5.1		36.0	25.0	18.0	1.2
8.0	5.5		6.9		36.0	25.0	18.0
10.0	7.1		8.5		40.0	28.0	20.0
12.0	8.2		10.4		45.0	33.0	22.5
14.0	8.1		12.7		45.0	33.0	22.5
16.0	10.1		14.2		48.0	36.0	24.0	1.6
18.0	10.8		16.2		48.0	36.0	24.0
20.0	11.4		18.2		50.0	38.0	25.0
25.0	13.6	9.3	23.0	24.1	56.0	44.0	32.0
32.0	15.5	9.9	30.0	31.2	60.0	48.0	35.0

???????????????????????????????：

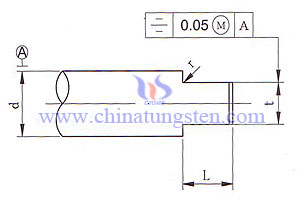

d		t		L	rmax
??????????????	?????????	???????????	????????????	L	rmax
3	3.75	2.12	0 -0.10	6.0	0.2
3.75	4.75	2.65	0 -0.10	7.0	0.2
4.75	6	3.35	0 -0.12	8.0	0.2
6	7.5	4.25		9.0	0.3
7.5	9.5	5.3		10.0	0.3
9.5	11.8	6.7	0 -0.15	11.5	0.4
11.8	15	8.5	0 -0.15	13.0	0.4
15	19	10.6	0 -0.18	15.0	0.4
19	23.6	13.2	0 -0.18	17.0	0.5
